Strut-Lock
Locking Device for Strut-Mounted Wire Suspension.

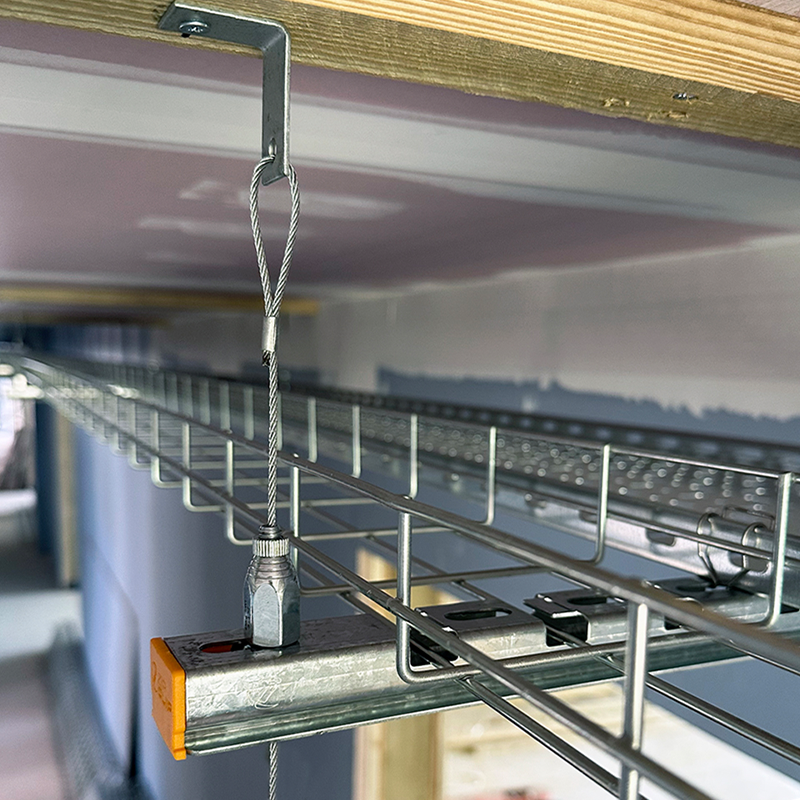

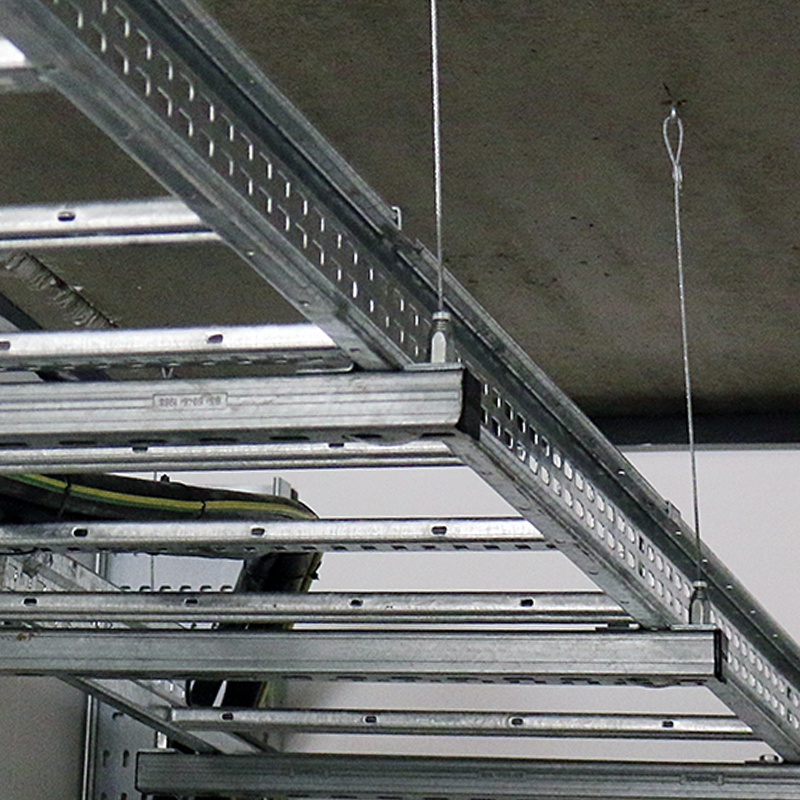

Strut-Lock is a locking device that fits into profile strut channel, allowing HVAC and M&E services to be hung from a wire suspension.
Fast, secure way to suspend from strut. Ideal wherever electrical, mechanical or HVAC services need a reliable, adjustable drop from an existing or new channel run.
Features & Benefits
- Fast, secure fixing point
- Compatible with Zip-Strut and traditional strut channel (41×41 and 41×21 profiles, plus other channel types with compatible nuts)
- Suitable for single-tier and multi-tier trapeze brackets
- Can be attached to existing bracketry, not just new channel
- Covers electrical containment, HVAC and mechanical services in one system
- High-tensile galvanised steel wire rope; mild steel body with bright zinc plate finish
- 18th Edition Amendment 2:2022 compliant
Availability
- M8: Compatible with Zip-Clip S-Wire
- M10: Compatible with Zip-Clip Y-Wire
Safe Working Loads:
- M8: 45 kg
- M10: 70/90 kg
Complete your solution
- Zip-Strut: Pre-fabricated, strut bracket
- End Fixing Options
